Description

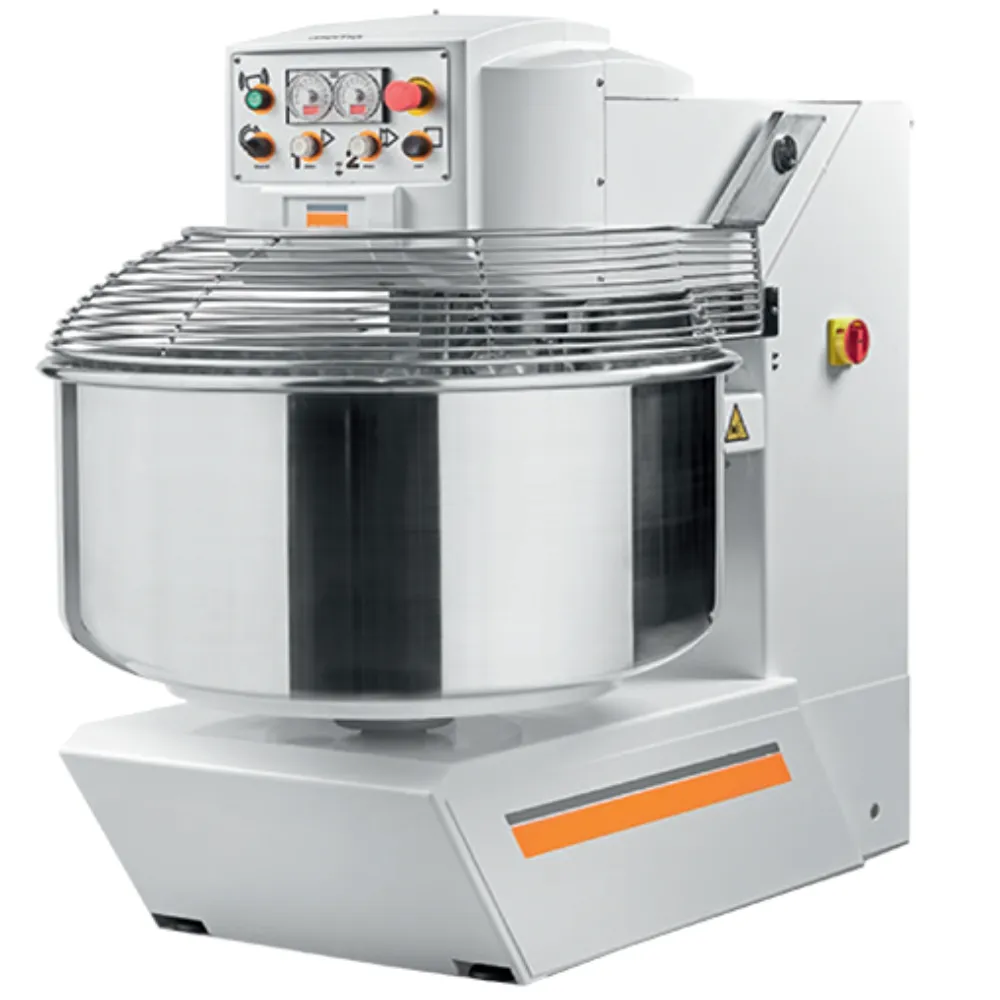

Model MX-IT-0100-M is a heavy-duty spiral machine with fixed basins made of stainless steel and includes a rear basin guard. This model is equipped with two kneading speeds, two timers to program the working cycle and contains two fixed wheels and adjustable feet for easy positioning. Larger capacity models are available upon request.
Technical
Model: MX-IT-0100-M
Voltage: 400 V/ 50 Hz
Power Spiral: 2,4 – 4,5 kW; Power Bowl: 0,56 kW
Number of Phases: 3 ~ PE
Dough Capacity: 22-220 lbs / 10-100 kg
Flour Capacity (Min-Max): 30 – 121lbs / 14 – 55kg
Bowl Capacity: 155 liters
Bowl Dimensions: Diameter: 27.6″ / 700mm; Height: 16.1″ / 410mm
Spiral speed 1 and 2: 117-234 r.p.m
Bowl speed 1 and 2: 15 r.p.m
Timer: 2
Dimensions (WDH): 29.1″ x 48.4″ x 49.2″ / 740 x 1230 x 1250mm
Weight w. Empty Bowl: 410kg / 904 lbs
Gross Weight: 465kg / 1025 lbs
